Home » Products » Thermal Imagers » Testo 872

Testo 872

Testo 872
Testo 872
Product Code : 04
Price And Quantity
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque
  • Main Domestic Market
  • All India
Product Description

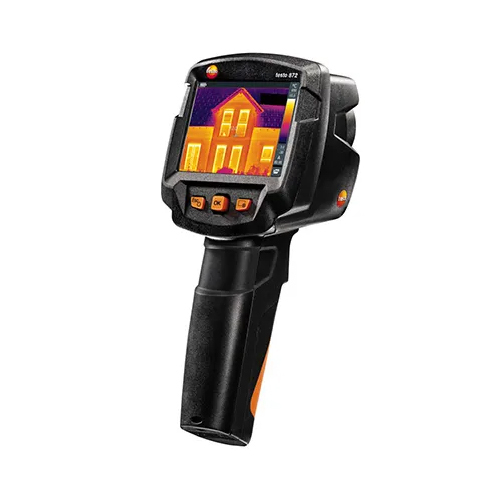

Testo 872

testo 872- Smart Thermal Camera with the highest image quality

The NEW thermal imager testo 872 with 320 x 240-pixels and excellent thermal sensitivity, numerous innovative functions, smartphone connection via the testo Thermography App also justifies the best price-performance ratio of its class. It also aids wireless integration of the measurement values of the clamp probe testo 770-3 as well as the thermohygrometer testo 605i (both available as an option).

Features:

  • Infrared resolution 320 x 240 pixels (with testo Super Resolution to 640 × 480 pixels)
  • With integrated digital camera and thermal sensitivity < 60 mK
  • With testo Scale Assist and testo ε-Assist
  • Wireless measurement data transfer from clamp meter testo 770-3 and humidity measuring instrument testo 605i via Testo thermography app.

Technical Specification

Infrared image output

Infrared resolution

320 x 240 pixels

Thermal sensitivity (NETD)

60 mK

Field of view/min.

42° x 30° /

focusing distance

< 0.5 m

Geometric resolution (IFOV)

2.3 mrad

testo Super Resolution

640 x 480 pixels

(pixels/IFOV)

1.3 mrad

Image refresh rate

9 Hz

Focus

Fixed focus

Spectral range

7.5 to14 µm

Visual image output


Image size / min. focusing distance

at least 3.1 MP / 0.5 m

Image presentation

Image display

8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

Digital zoom

2x, 4x

Display options

IR image / real image

Colour palettes

iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT

Data interfaces

WLAN Connectivity

Communication with the testo Thermography App

Bluetooth1)

Measurement value transfer from thermohygrometer testo 605i,clamp meter testo 770-3 (optional)

USB 2.0 Micro B

Measurement

Measuring ranges

Measuring range 1: -30 to +100 °C

Measuring range 2: 0 to +650 °C

Accuracy

±2 °C, ±2 % of measured value

Emissivity / reflected temperature compensation

0.01 to 1 / manual

testo ε-Assist

Automatic recognition of emissivity and determination of reflected temperature (RTC)

Measurement functions

Analysis functions

Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)

testo Scale Assist

IFOV warner

Humidity mode – manual

Humidity measurement with humidity measuring instrument1)

Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)

Solar mode – manual

Input of solar radiation value

Electrical mode – manual

Input of current, voltage or power

Electrical measurement with clamp meter1)

Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordered separately)


Imager equipment

Digital camera

Lens

42° x 30°

Laser2)

Laser class 2

Video streaming

via USB, via wireless LAN with testo Thermography App

Storage as JPG

Fullscreen mode

Image storage

File format

.bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls

Memory

Internal memory (2.8 GB)

Power supply

Battery type

Li-ion battery can be changed on-site

Operating time

4 hours

Charging options

In instrument/in charging station (optional)

Mains operation

Ambient conditions

Operating temperature range

-15 to +50 °C

Storage temperature range

-30 to +60 °C

Air humidity

10 to 90 %RH, not condensing

Housing protection class (IEC 60529)

IP54

Vibration (IEC 60068-2-6)

2G

Physical features


Weight

510 g

Dimensions (LxWxH)

219 x 96 x 95 mm

Housing

PC - ABS

PC software

System requirements

Windows 10, Windows 8, Windows 7

Standards, tests, warranty

EU directive

EMC: 2014/30/EU

RED: 2014/53/EU

Warranty

2 years

1)Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey

2)excepting USA, China and Japan
